How to Lower GPU Power Draw Without Losing FPS

by GigaScreens Team
Lower GPU Power Draw
Quick answer: Cap your frame rate at or just below your monitor’s refresh rate first, with NVIDIA’s Max Frame Rate setting or AMD Radeon Chill. That alone stops the card burning power on frames you never see. Then lower the power limit a little, or undervolt, and check your FPS. An undervolt can keep performance close to stock, while a big power-limit cut will cost some FPS.
On this page

Graphics cards are tuned to chase the highest frame rate they can, even when your monitor can’t show it. That’s where a lot of wasted power goes. The fixes below use the controls NVIDIA and AMD build into their own software, described in NVIDIA‘s and AMD‘s support pages, checked on 1 November 2026. We haven’t measured wattage savings ourselves, so there are no percentage claims here. Your savings depend on the card and the game.

Step 1: Cap your frame rate

This is the easy win. If a 144Hz monitor gets 250 FPS, the card is drawing frames you never see, and it’s using power to do it. NVIDIA’s Max Frame Rate setting exists for this, and NVIDIA lists saving power as one of its uses (NVIDIA). Find it in the NVIDIA App under Graphics, or in the NVIDIA Control Panel under Manage 3D settings.

Set it a few frames below your refresh rate, say 141 for 144Hz, if you use G-SYNC or FreeSync. Menus and loading screens benefit too, since they can otherwise run at hundreds of frames per second. Same trick quiets coil whine, by the way.

Advertisement

On AMD, Radeon Chill goes further. AMD describes it as a power-saving feature that lowers the frame rate when you’re barely moving and ramps it back up when the action starts (AMD). You set a minimum and maximum FPS in AMD Software under Gaming, then Graphics. AMD notes Chill can’t run at the same time as Anti-Lag or Radeon Boost.

Step 2: Lower the power limit

Every modern card has a power limit you can pull down. On AMD, AMD Software’s Performance > Tuning page has a Quiet preset that AMD says uses lower power and fan settings, and a Power Tuning slider for a custom limit (AMD). On NVIDIA, the usual tool is MSI Afterburner, which has a Power Limit slider and works with cards from any brand.

Try 90% or 85% first and play a game you know well. Clocks drop a bit when the card hits the new limit, so you may lose a few FPS in the heaviest scenes. Many people find a small cut is hard to notice in play. A big one is easy to notice. Watch your frame rate rather than guessing.

Advertisement

Step 3: Undervolt (more effort, better result)

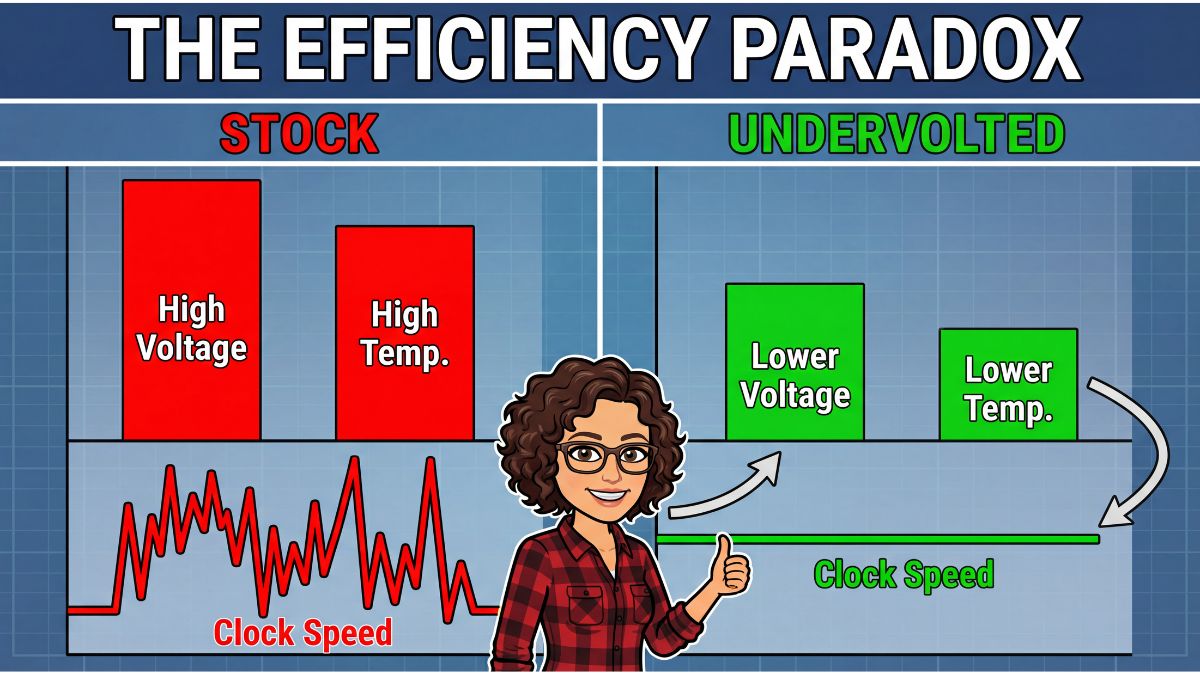

An undervolt asks the GPU to run its clocks at a lower voltage. Lower voltage means less power and less heat for the same work, which is why it can save power with little or no FPS loss when it’s stable. AMD has an Undervolt GPU preset on supported cards that does it automatically (AMD). For NVIDIA cards, MSI’s own guide walks through the curve editor in Afterburner (MSI).

The catch: every chip is different, so a setting that works on one card can crash another. Lower in small steps, test with a long game session or a stress test, and back off at the first crash or artifact. Our RX 6600 undervolting guide shows the AMD steps in detail.

Step 4: Use upscaling, and lower what you won’t miss

DLSS, FSR and XeSS render the game at a lower resolution and upscale it. Fewer pixels rendered means less work per frame, so paired with a frame cap the card has more headroom and draws less power to hit the same FPS. Quality mode is a fair starting point at 1440p and 4K.

Some settings cost a lot for little visible change, like the highest shadow or volumetric levels. Dropping one or two of those with a frame cap in place lowers the load further.

How to check it’s working

Turn on a performance overlay (the NVIDIA App overlay, AMD’s Adrenalin metrics overlay, or Afterburner’s) and look at board power while you play, before and after each change. For context, NVIDIA lists the RTX 4060 at 115W total graphics power and 110W average gaming power, with 7W at idle (NVIDIA). Your card’s spec page will have its own numbers.

Want a card that never draws more than 75W? That’s the most a PCIe slot supplies, so any card without a power connector stays under it. Our roundup of low profile GPUs that run without a power connector lists the current options.

Cooler running is a bonus. If heat is what sent you here, our guides on high GPU temperatures and GPU thermal throttling cover airflow, dust and fan curves. Cutting power often means cutting settings that eat VRAM too — our how much VRAM you need guide shows where those trade-offs start.

FAQ

Does lowering GPU power reduce FPS?

A frame cap at your refresh rate doesn’t cost visible FPS, since the extra frames weren’t being shown. A power-limit cut can cost a few FPS in heavy scenes. A stable undervolt often keeps performance close to stock.

Is undervolting a GPU safe?

Lower voltage doesn’t harm the card. The risk is instability, like crashes or artifacts, if you go too low. Back off in small steps until it’s stable.

What’s the easiest way to lower GPU power use?

Cap the frame rate. NVIDIA’s Max Frame Rate setting and AMD’s Radeon Chill are built into the drivers and take a minute to set.

Does Radeon Chill work in every game?

AMD says it works with most DirectX 9, 10, 11, 12 and Vulkan games. It can’t be used at the same time as Radeon Anti-Lag or Radeon Boost.

Should I cap FPS below my refresh rate?

With G-SYNC or FreeSync, a cap a few frames below the refresh rate is common practice, since it keeps the frame rate inside the variable refresh range.

Sources

We haven’t measured power savings on our own hardware. Settings and features come from NVIDIA, AMD and MSI’s own pages, linked below.
