Welcome to the cutting edge of small form factor (SFF) gaming! In 2024, building a compact RTX 4090 system isn’t just a dream – it’s a thrilling reality for high-end SFF enthusiasts. This guide will walk you through creating a mini ITX build that packs the punch of NVIDIA’s flagship GPU into a space-saving package. Ready to embark on your mini ITX build journey? Let’s dive in!
1. Choosing the Right Mini ITX Case: Mastering RTX 4090 ITX Case Fitment
The foundation of any small form factor gaming PC is the case. Regarding RTX 4090 ITX case fitment, size matters but so does airflow design. Here’s a comparison of top contenders for your compact RTX 4090 system:
| Case Model | GPU Clearance | Radiator Support | Pros | Cons |
|---|---|---|---|---|
| Lian Li Q58 | 320mm | Up to 280mm | Excellent ITX case airflow design | Tight fit for some GPUs |
| Cooler Master NR200P Max | 336mm | Included 280mm AIO | Great mini ITX GPU clearance | Pricier option |
| SSUPD Meshlicious | 334mm | Up to 280mm | Supports vertical GPU mounting | Cable management challenges |
| Sliger SM580 | 328mm | Up to 280mm | Premium SFF build quality | Expensive |
Pro Tip: Some enthusiasts explore ITX case modding for RTX 4090 to improve airflow or fitment. While effective, this requires expertise and may void warranties.

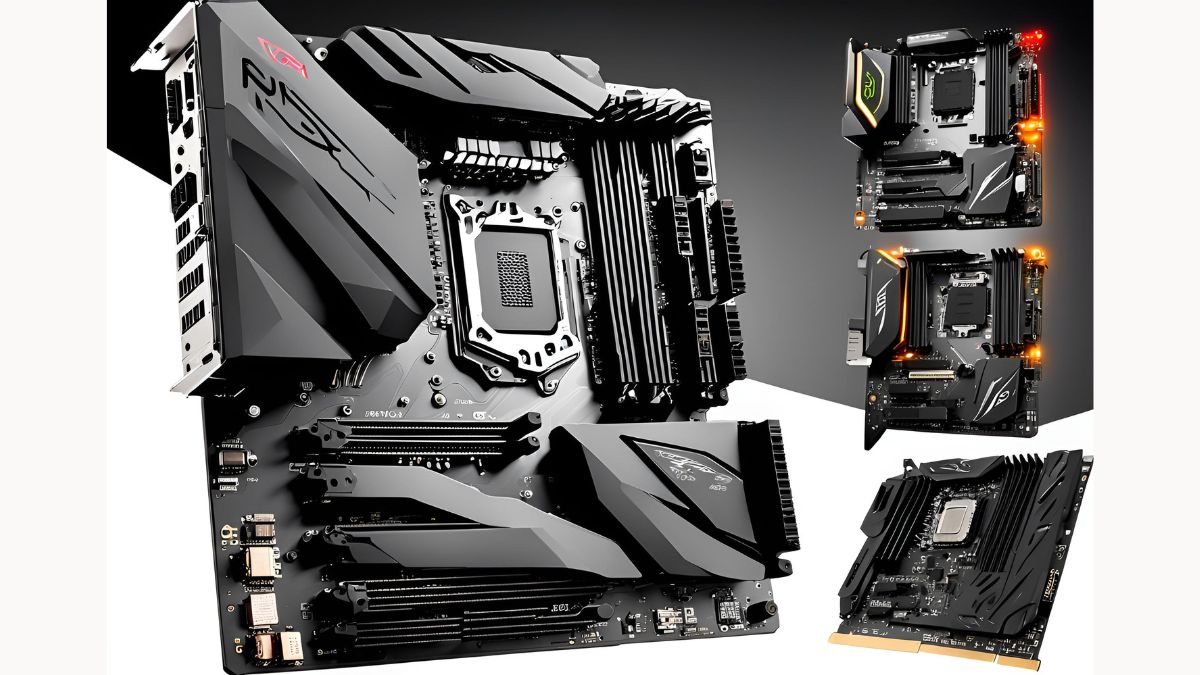

2. ITX Motherboard Selection: The Heart of Your Compact PC
Choosing the right motherboard is crucial for your high-performance SFF gaming rig. Here’s a comparison of some top mini ITX motherboards:
| Motherboard | Socket | Key Features | VRM | Price Range |
|---|---|---|---|---|
| ASUS ROG Strix Z790-I | LGA 1700 | WiFi 6E, Excellent ITX motherboard VRM cooling | 10+1 phase | Â $300 to $500 |
| MSI MEG Z790I Unify | LGA 1700 | High mini ITX overclock potential | 12+1+1 phase | Â $250 to $370 |
| Gigabyte X670E AORUS Ultra | AM5 | PCIe 5.0 is great for future upgrade paths | 14+2+1 phase | Â $350 to $450 |
| ASRock X670E PG-ITX/TB4 | AM5 | Thunderbolt 4, Solid VRM for SFF builds | 14+2+1 phase | $200 to $300 |
Remember: Strong VRM design is essential for mini ITX BIOS optimization and stable overclocking in thermally challenging SFF environments.

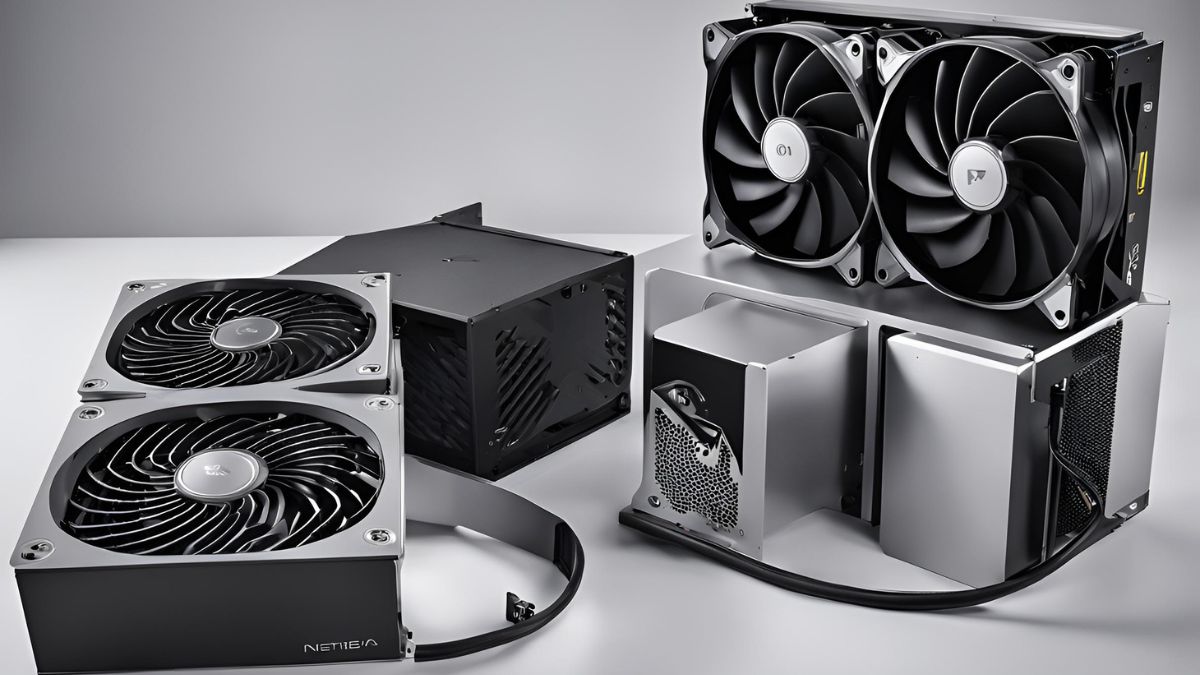

3. Powering Your Beast: SFX Power Supply for RTX 4090
Selecting the right power supply is crucial for your compact RTX 4090 system. Here are some top high-wattage SFX PSU options:
| PSU Model | Form Factor | Wattage | Efficiency | Fan Size |
|---|---|---|---|---|
| Corsair SF1000L | SFX-L | 1000W | 80+ Platinum | 120mm |
| Silverstone SX1000 | SFX-L | 1000W | 80+ Platinum | 120mm |
| Cooler Master V850 SFX Gold | SFX | 850W | 80+ Gold | 92mm |
RTX 4090 Power Requirements and Efficiency:
- RTX 4090: Up to 450W
- High-end CPU: 125-250W
- Other components: ~100W
- Recommended PSU: 1000W for optimal SFF RTX 4090 power consumption and efficiency
Pro Tip: Consider RTX 4090 undervolting to improve power efficiency in your SFF build without significantly impacting performance.
4. SFF Cooling Solutions: Taming the Heat in Your Compact RTX 4090 System
Effective thermal management is crucial for high-performance SFF gaming. Let’s explore cooling options:
CPU Cooling Options:
| Cooler Type | Model | Height | Pros | Cons |
|---|---|---|---|---|
| AIO | NZXT Kraken X53 | 52mm (rad) | Excellent compact liquid cooling solution | Potential pump noise |
| AIO | Arctic Liquid Freezer II 240 | 38mm (rad) | Great for SFF cooling solutions | May not fit all cases |
| Air | Noctua NH-L12S | 70mm | Low profile, quiet | Limited OC potential |
| Air | Scythe Big Shuriken 3 | 69mm | Good for ITX build airflow optimization | It can be louder under load |
RTX 4090 Thermal Management Tips:
- Consider deshrouding for better cooling in tight spaces.
- Optimize case fan configuration for maximum airflow.
- Monitor temperatures closely using ITX build temperature monitoring tools.

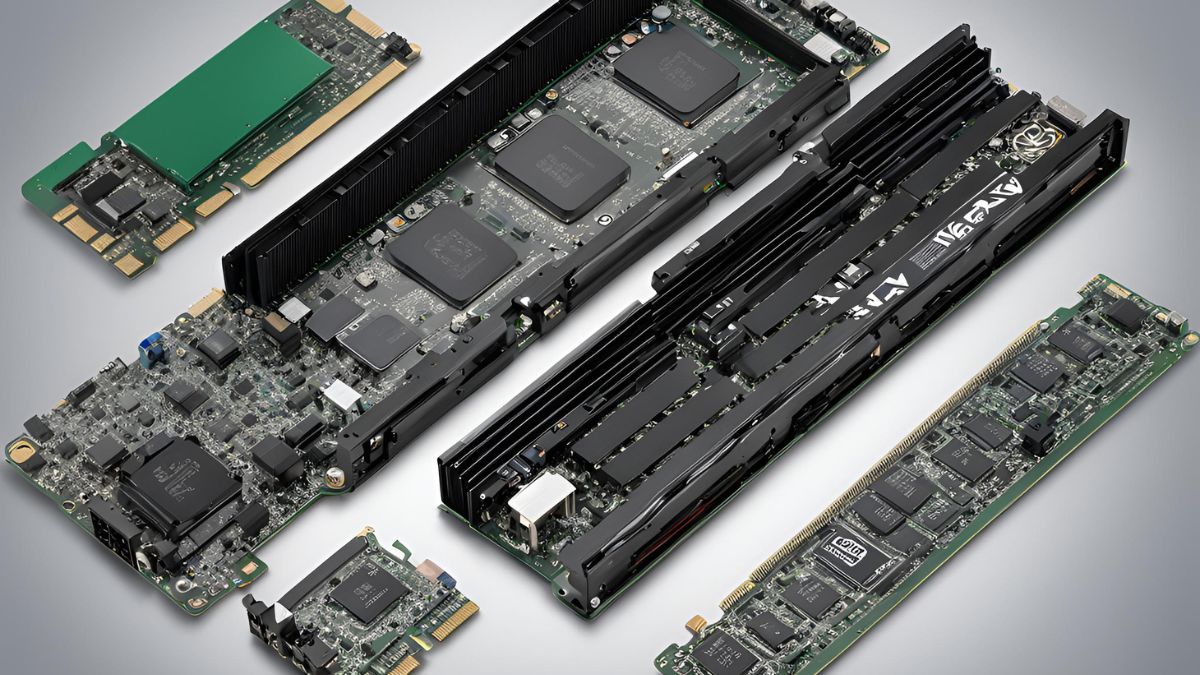

5. Memory and Storage: Maximizing Performance in Limited Space
Choosing the right RAM and storage is crucial for your mini ITX build. Here are some recommendations:
RAM Recommendations (Pay attention to mini ITX RAM compatibility):
| RAM Kit | Speed | CAS Latency | Height |
|---|---|---|---|
| Corsair Vengeance LPX 32GB | 5600MHz | CL36 | 34mm |
| G.Skill Trident Z5 32GB | 6000MHz | CL36 | 44mm |
NVMe Storage for ITX Builds:
| Drive Type | Model | Capacity | Read/Write Speed |
|---|---|---|---|
| NVMe PCIe 4.0 | Samsung 990 Pro | Up to 2TB | 7,450 / 6,900 MB/s |
| NVMe PCIe 4.0 | WD Black SN850X | Up to 4TB | 7,300 / 6,600 MB/s |
Pro Tip: Use M.2 to PCIe adapters to expand your NVMe storage options in space-constrained builds.
6. Cable Management Techniques: The Art of SFF Cable Routing
Mastering cable management is essential for optimal airflow and aesthetics in your compact PC. Here are some SFF build tool recommendations:
| Tool | Purpose |
|---|---|
| Magnetic screwdriver set | Prevents lost screws in tight spaces |
| Fine-tipped tweezers | Handling small connectors |
| Headlamp | Illuminating the dark corners of your case |
| Cable combs | Keeping custom-length PSU cables tidy |
SFF PC Assembly Tips:
- Plan your cable routing before installation
- Use small form factor cable sleeves for a clean look
- Consider custom-length PSU cables for optimal fit
- Don’t overlook small form factor GPU sag prevention techniques
Related:
RTX 4080 vs 4090: Which NVIDIA GeForce GPU Reigns Supreme in 2024?
7. Optimizing Performance and Thermals: Unleashing Your Compact PC’s Potential
Fine-tuning is key to maximizing RTX 4090 mini ITX performance. Here’s a quick guide to compact PC performance tweaks:
| Optimization | Tool | Target |
|---|---|---|
| RAM XMP/DOCP | BIOS | Enable rated speeds |
| Resizable BAR | BIOS | Enable compatible games |
| CPU Undervolting | BIOS or Throttlestop | Reduce heat, maintain performance |
| GPU Undervolting | MSI Afterburner | Start with -50mV offset |
| Custom Fan Curves | BIOS or Fan Control software | Balance noise and cooling |
Monitoring Tools for RTX 4090 SFF Benchmarks:
- HWiNFO64 for comprehensive system info
- MSI Afterburner + RTSS for in-game overlay
Don’t forget about compact PC noise reduction techniques, such as using sound-dampening materials and optimizing fan curves.
Conclusion: Your Gateway to High-Performance SFF Gaming
Building a mini ITX RTX 4090 system is the pinnacle of small form factor gaming PC craftsmanship. It requires careful SFF build part compatibility consideration, creative problem-solving, and a passion for compact, high-performance computing.
As you embark on your mini ITX build journey, remember that patience and attention to detail are your best friends. Don’t be afraid to iterate on your design – every SFF enthusiast’s first build is a learning experience.
For those looking to push the envelope further, explore advanced techniques like compact PC RGB lighting for aesthetics or custom water cooling loops for ultimate thermal performance. The world of high-end SFF builds is constantly evolving, offering exciting mini ITX future upgrade paths.
Ready to create your compact gaming powerhouse? Gather your components, clear your workspace, and prepare for an epic build session. May your temperatures be low, your framerates high, and your gaming experience unparalleled!
